Civil Compressors

Our growing range of compressors aimed at the civil and earthmoving industries in Australia has developed off the back of real market research. We've released this range in response to the high demand for our products in the Civil and Construction industries. We’ve adjusted the machines that have been designed to thrive in some of the world’s most demanding applications for compressed air, taken that highly successful DNA and made it suitable for industrial and construction use too.

Additional features of the civil machines (prefixed by “SP”) include:

  • Fluorescent, reflective tape for  high visibility on site during both day and night operations
  • Mounted fire extinguisher in accessible location for emergency use
  • Wheel chocks mounted
  • Manual rewind hose reel with Nitto PVR Safety Coupler and high-flow 3/4″ ID hose
  • External lockable battery isolator for safety and security
  • External (weather sealed) operator’s manual holder for easy access
  • Heavy-duty braked trailers with off-road wheels (including a spare as standard), large springs and high ground clearance
  • Wheel nut indicators for a quick visual confirmation on nut tension.

All the Brüder SP machines have passenger side mounted controls and outlets for operator safety on road construction projects.

Additionally, these machines have been designed for easy user-friendly servicing and maintenance.

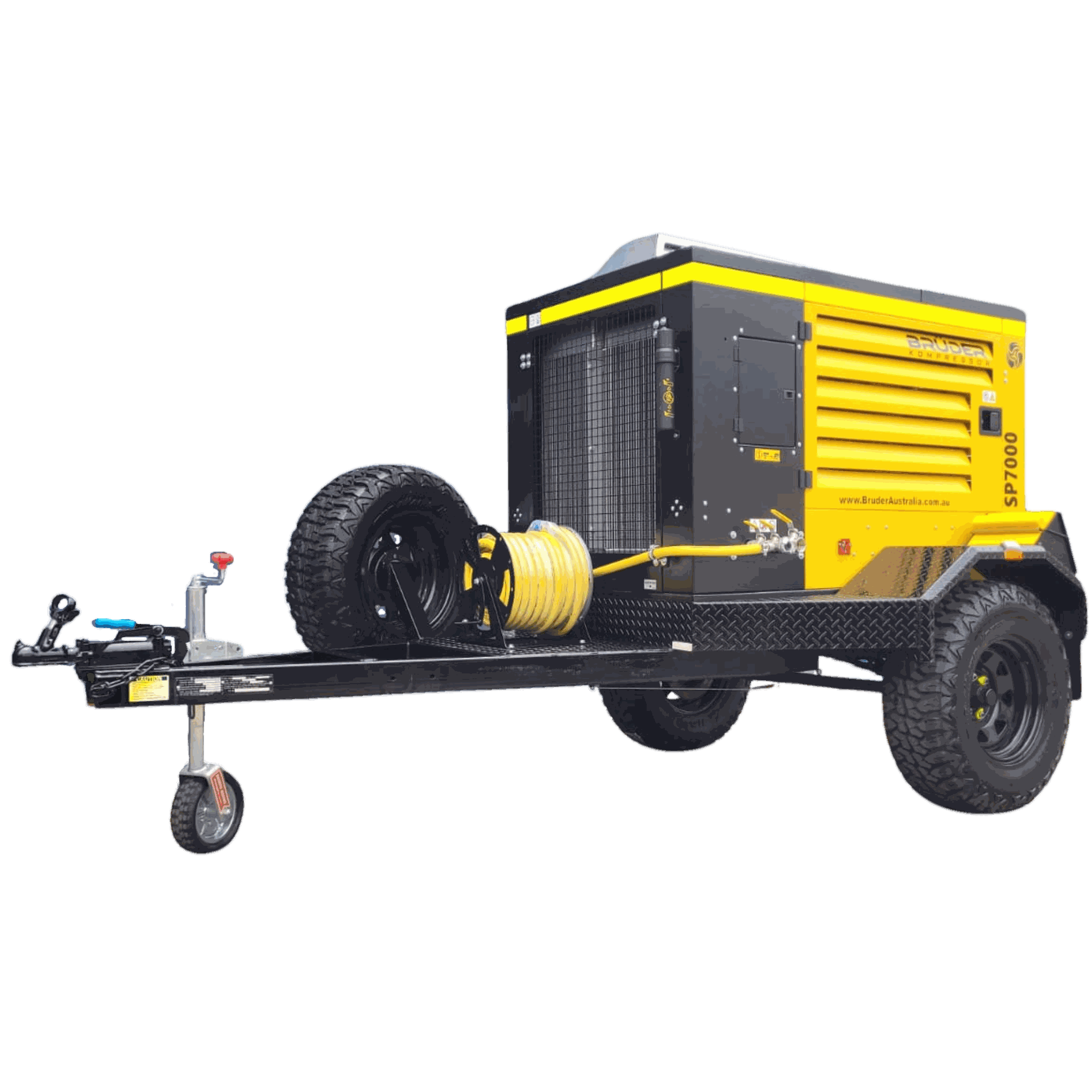

SP7000

TECHNICAL PARAMETERS:
SP7000 (7 bar)
Air end: EVO9G
Nominal capacity [m3/min]: 7
Nominal overpressure [bar]: 7
Safety valve setting [bar]: 15
Ambient temperature [C]: -10 to +46
Max outlet temperature [C]: 110
Cooling system: Oil injection
Compressor oil filling volume [Litres]: 19
Max oil system temperature [C]: 110
Max oil system pressure [bar]: 8.5
Outlet valves : 2 x G3/4″ BSP, 1 x 1 1/4″ BSP

ENGINE PARAMETERS:
Type/Model: Kubota V3300DI
Cylinders: 4
Load speed [rpm]: 2600
Idle speed (Eco mode) [rpm]: 1500
Oil filling volume [Litres]: 9
Fuel tank volume [Litres]: 115
Coolant filling volume [Litres]: 4
Battery [V/Ah]: 12/135

NOISE EMISSIONS:
Sound power level LWA [dB(A)/pW]: 102

MOUNTING OPTIONS:
The SP7000 chassis has 3 foot pads which are integral to the design of the machine, placed in a manner to facilitate even load distribution when lifting from the top. As such, the compressor is best fitted to a skid or a trailer for portability. However, the skid can be omitted for permanent installation to a truck tray, service trailer or similar.

TRAILER SPECS:
Max. transport speed [km/h]: 110
Total mass [kg]: 1450
Max. mass on axle [kg]: 1450
Total length [mm]: 3170
Total width [mm]: 1860
Total height (includes lift eye and exhaust) [mm]: 1850
Wheel: R15
Tyre: 235/75/15 L/T
Suspension: Off-Road Leaf Spring
Coupling: 50mm ball
Spare tyre: Yes
Brakes: Mechanical disc
Tyre pressure [kPa/psi]: 450/65
Able to be road registered: Yes

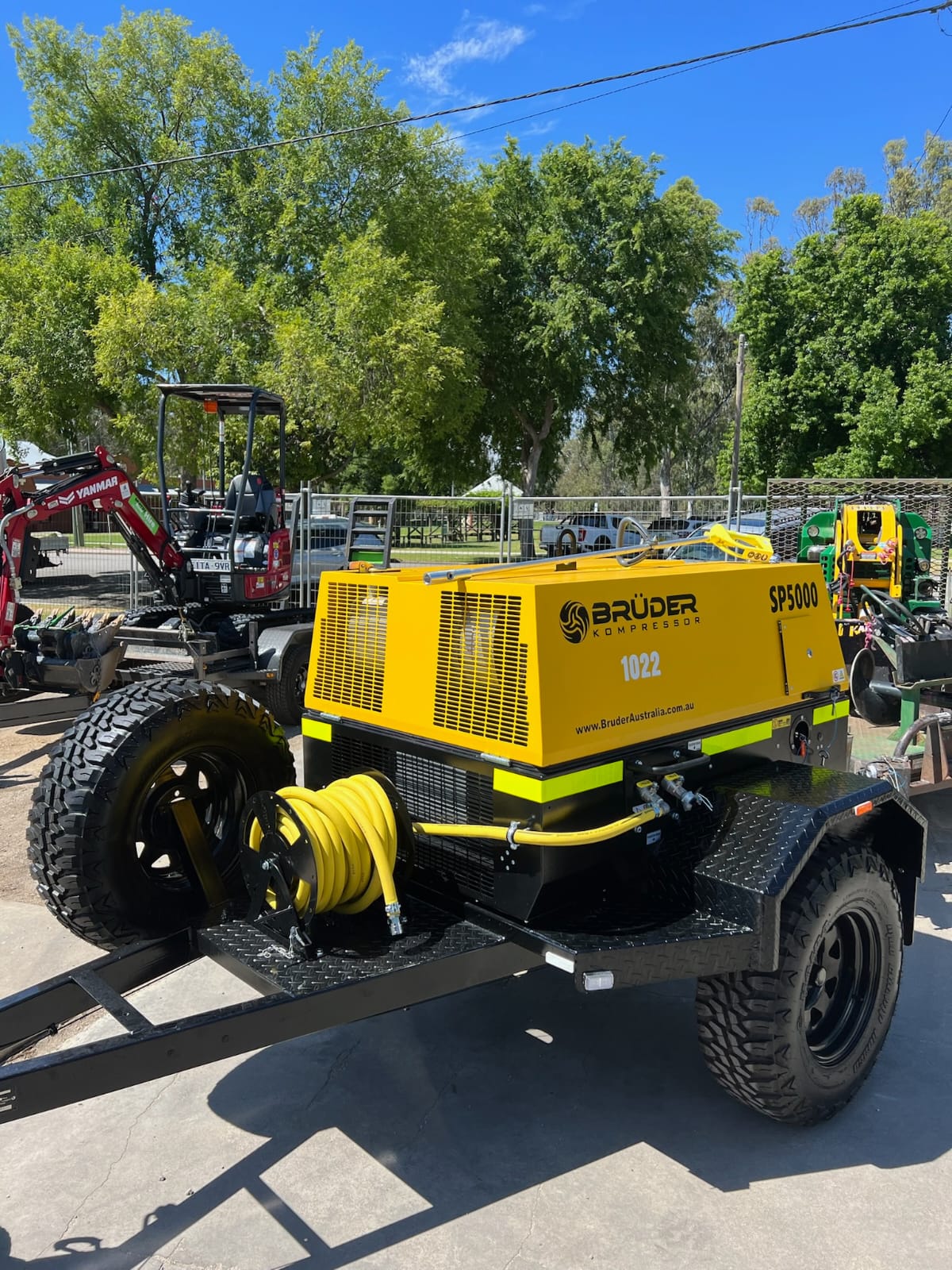

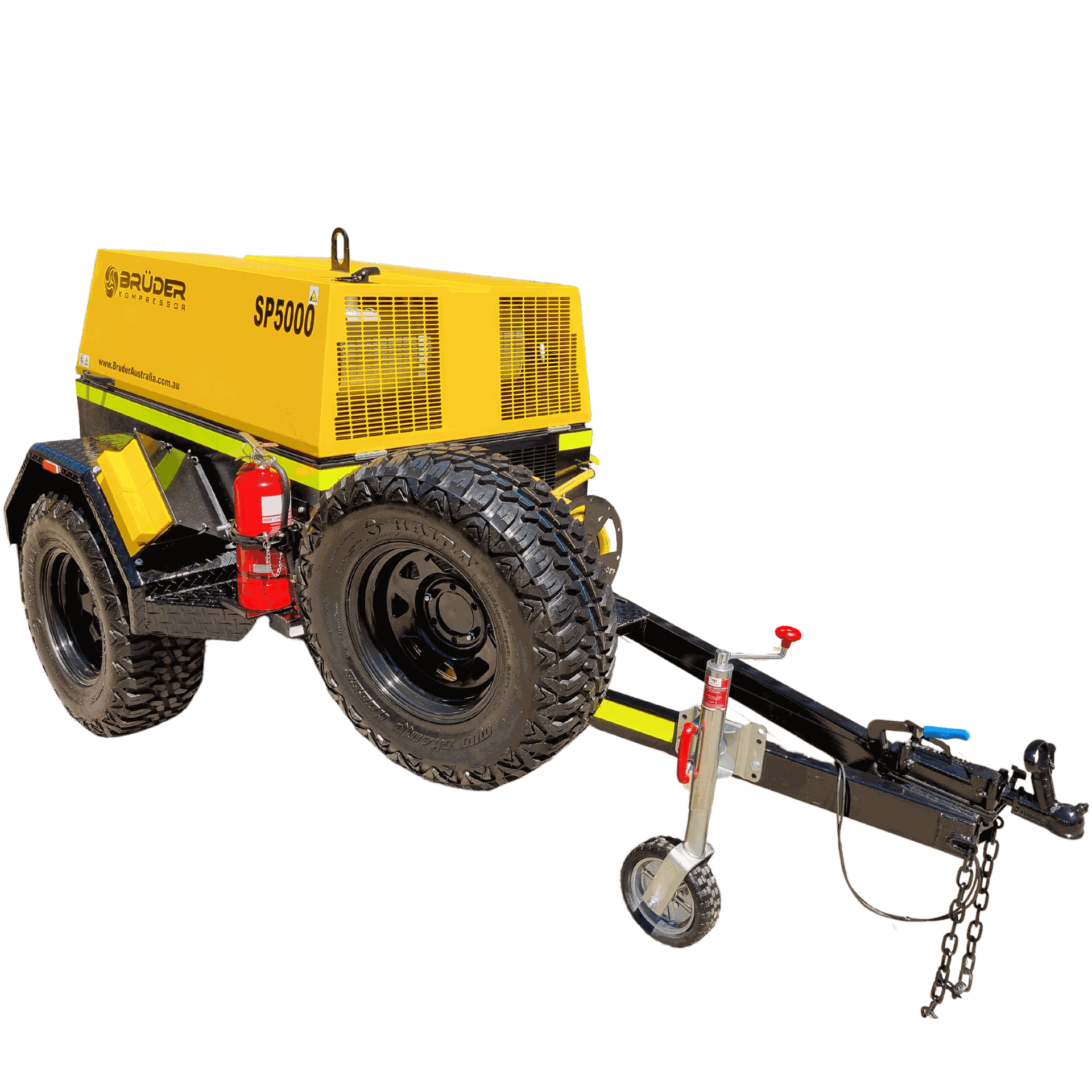

SP5000

QUICK SPECS:
Free Air Delivery: 176cfm (5m3/min)
Working Pressure: 7 bar (101 PSI)
Engine: Kubota V1505-T Turbo Diesel
Engine Rated Power at 3000RPM: 36.4 HP (27 kW)

TECHNICAL PARAMETERS:
SP5000 (7 bar)
Air end: B100
Nominal capacity [m3/min]: 5
Nominal overpressure [bar]: 7
Safety valve setting [bar]: 10
Ambient temperature [C]: -10 to +50
Max outlet temperature [C]: 110
Cooling system: Oil injection
Compressor oil filling volume [Litres]: 7.2
Max oil system temperature [C]: 110
Max oil system pressure [bar]: 8.6
Outlet valves: 2 x G3/4″ BSP

ENGINE DETAILS:
Type/Model: Kubota 1505-T
Cylinders: 4
Load speed [rpm]: 3000
Idle speed [rpm]: 1500 ± 50
Oil filling volume [Litres]: 6.7
Fuel tank volume [Litres]: 70
Coolant filling volume [Litres]: 4
Battery [V/Ah]: 12/44

NOISE EMISSIONS:
Sound power level LWA [dB(A)/pW]: 98
Sound pressure level LPA [dB(A)/20 uPa]: 78
